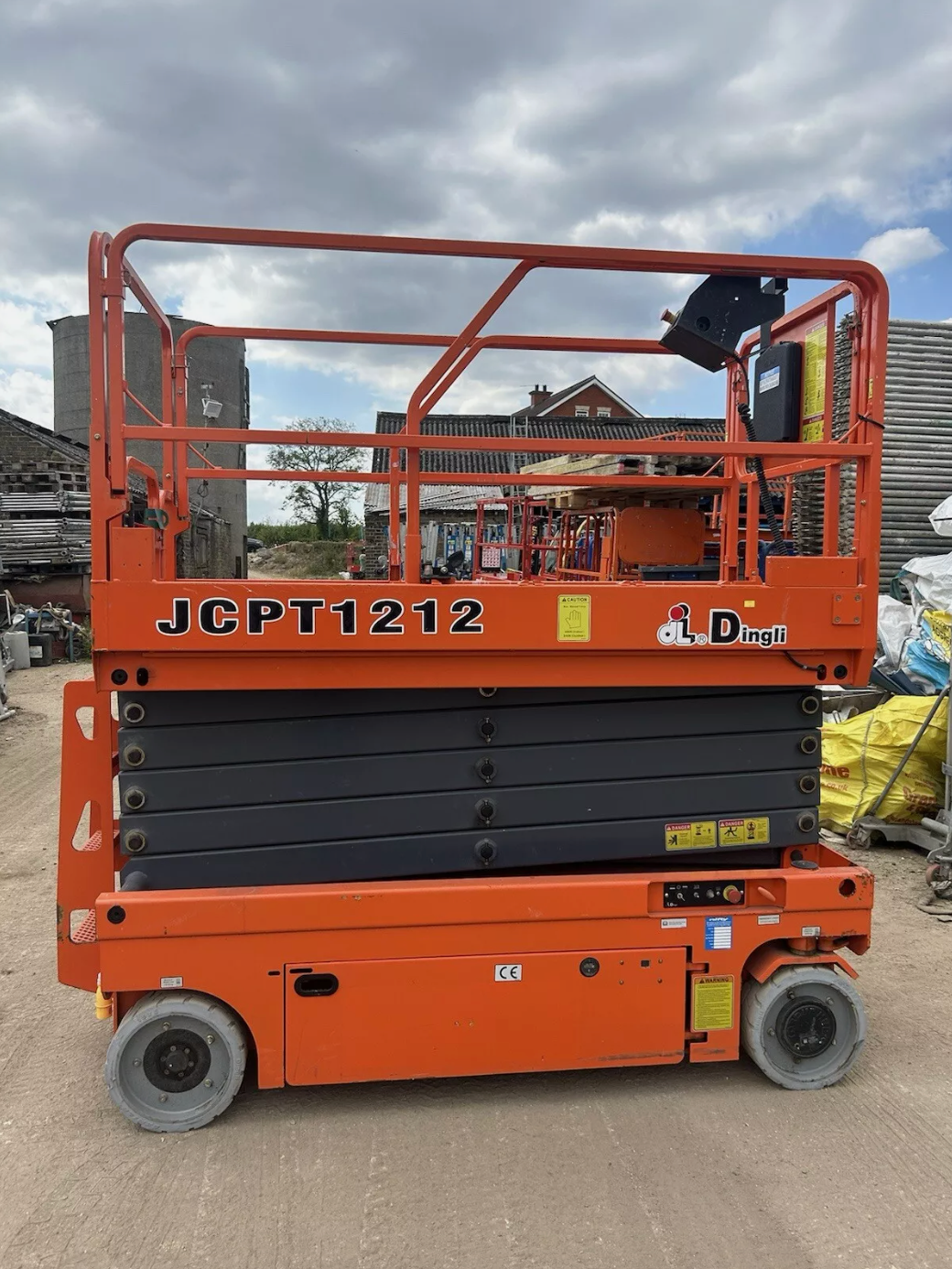

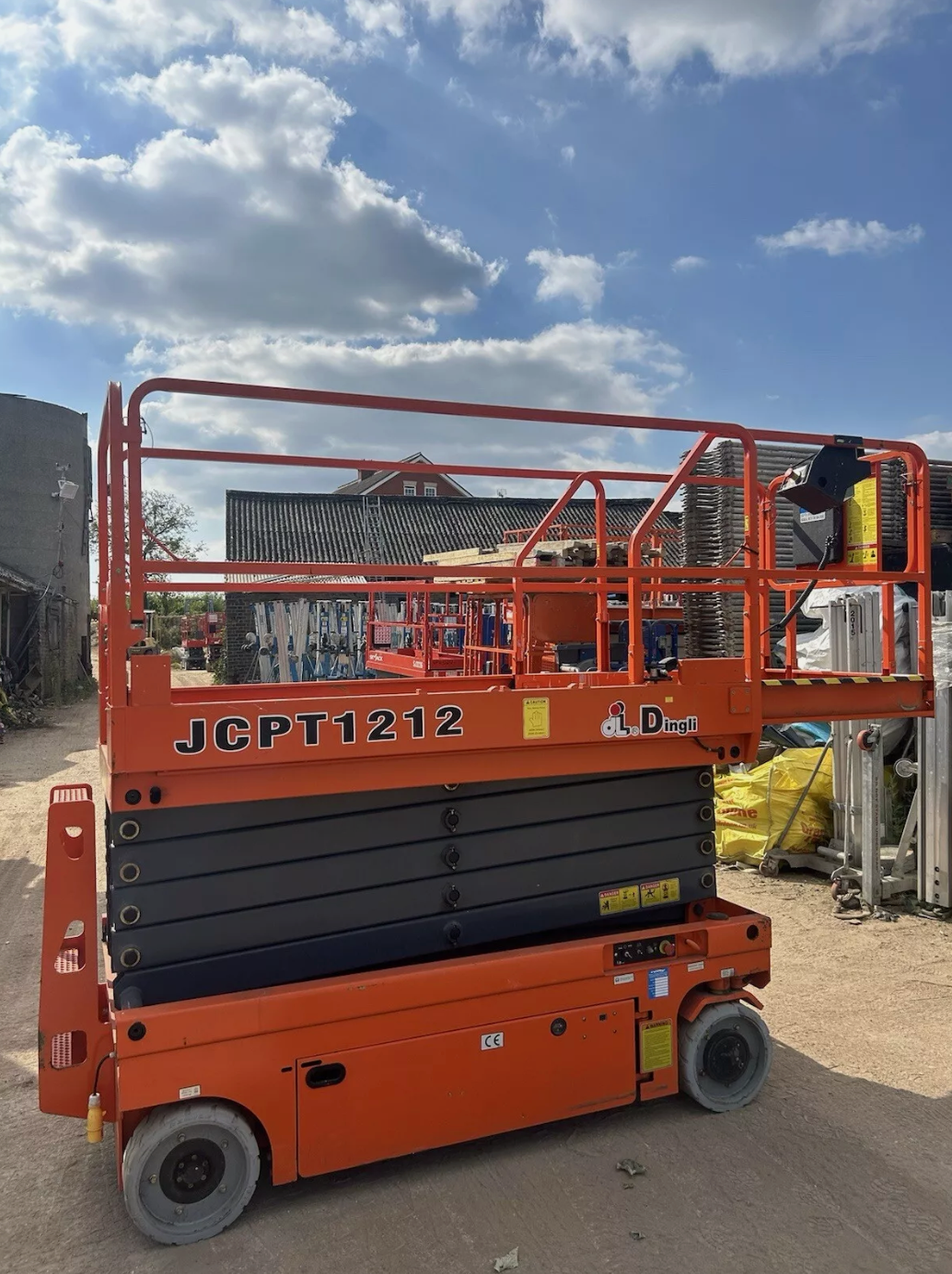

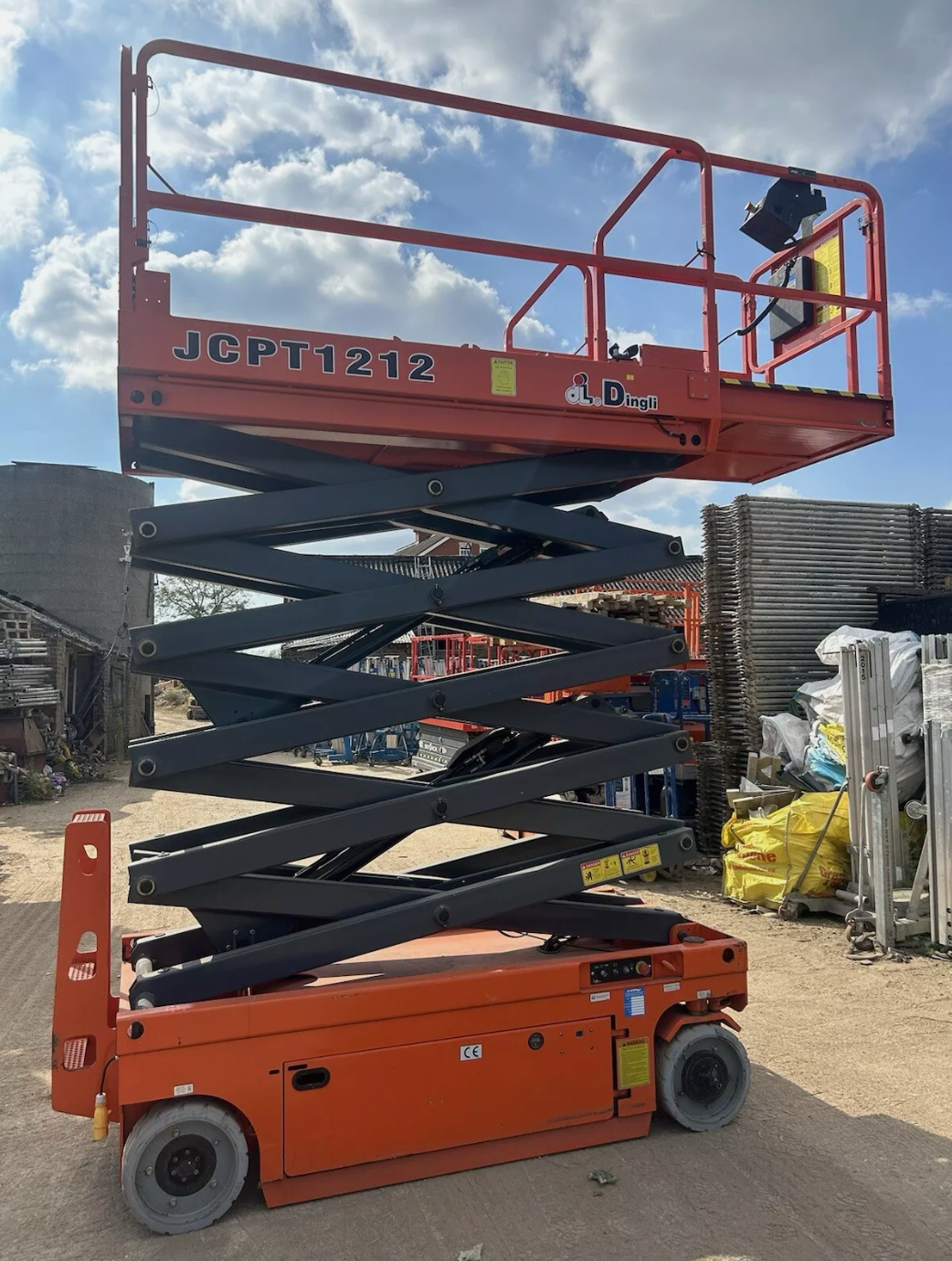

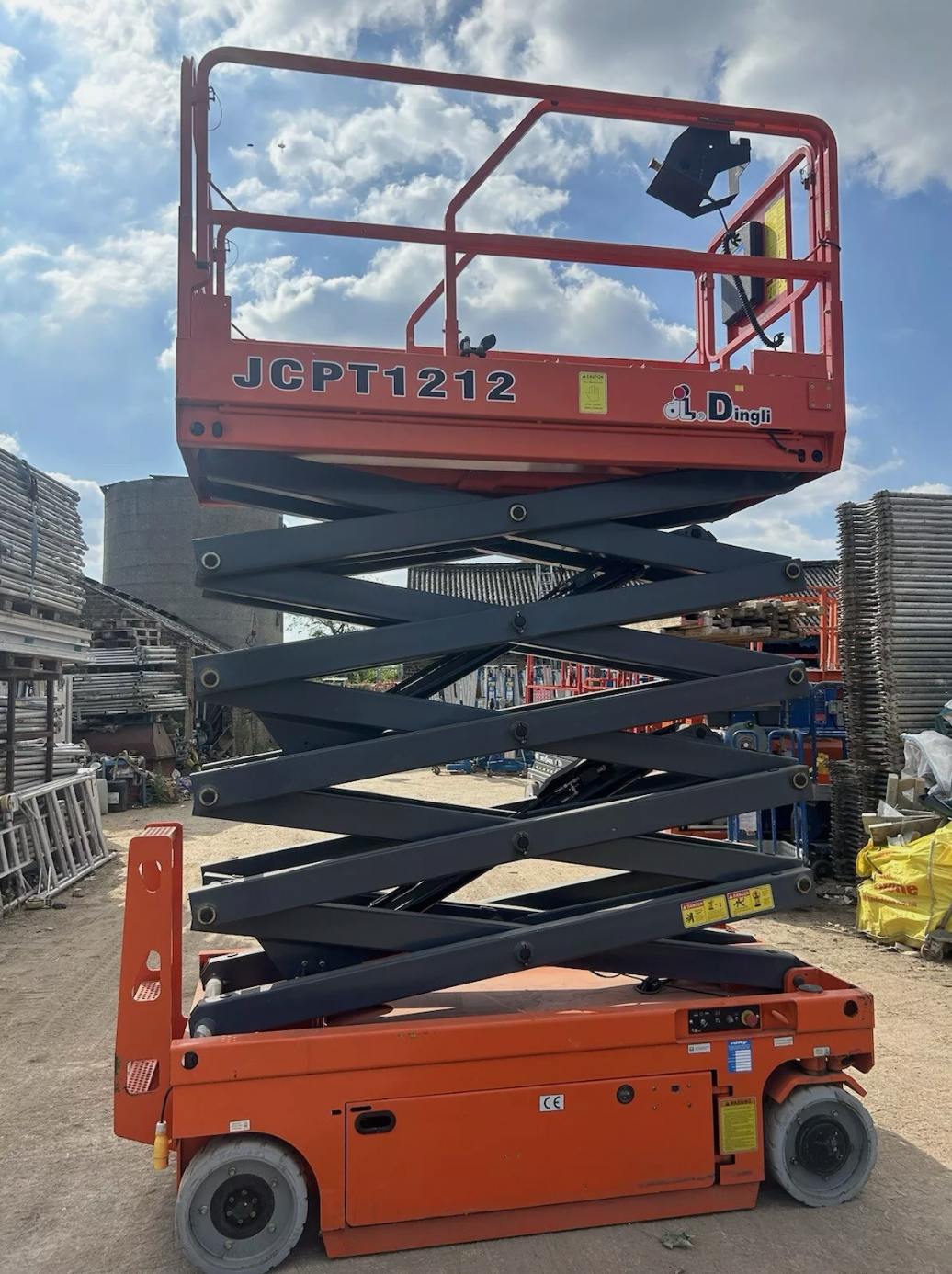

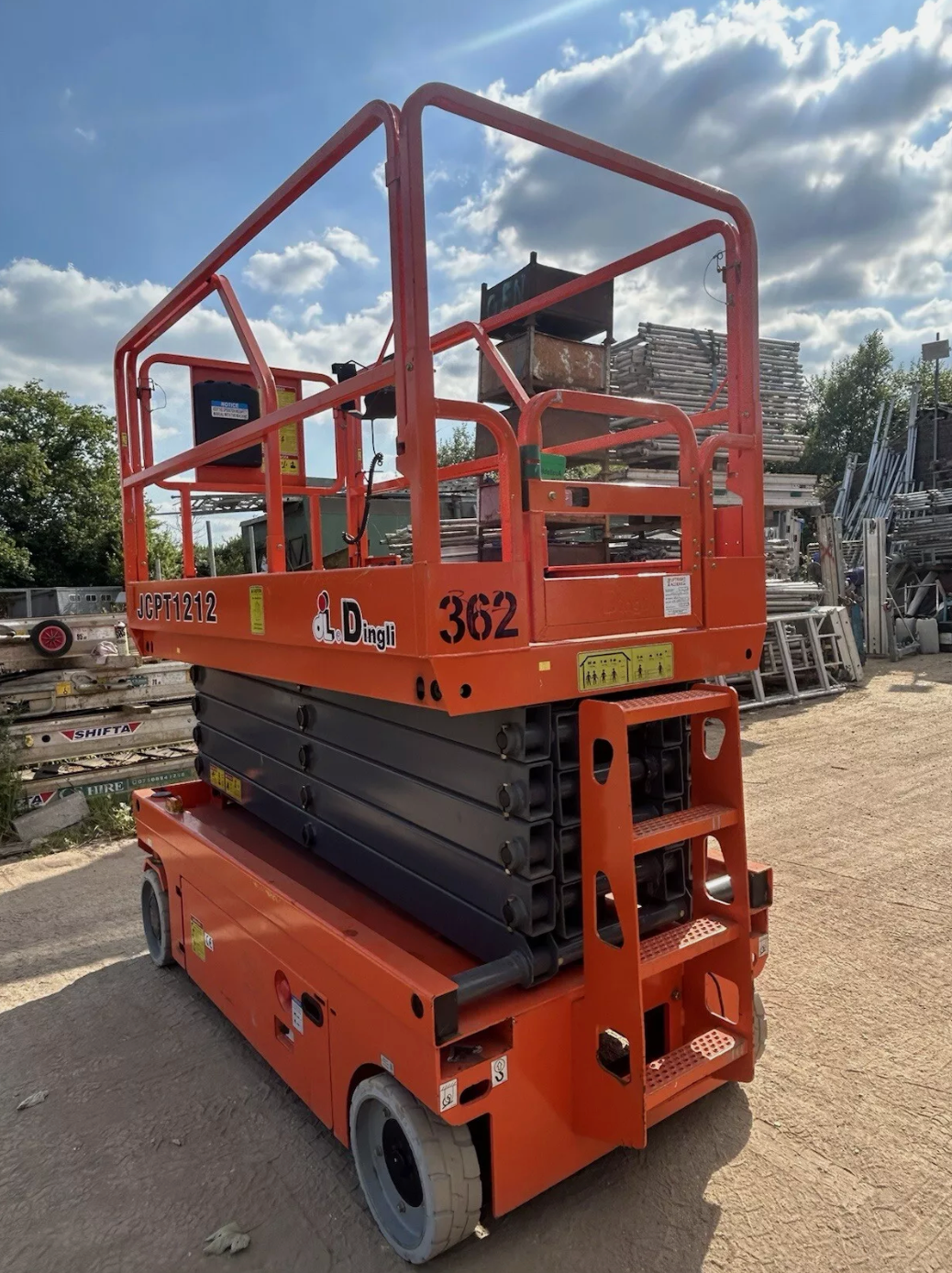

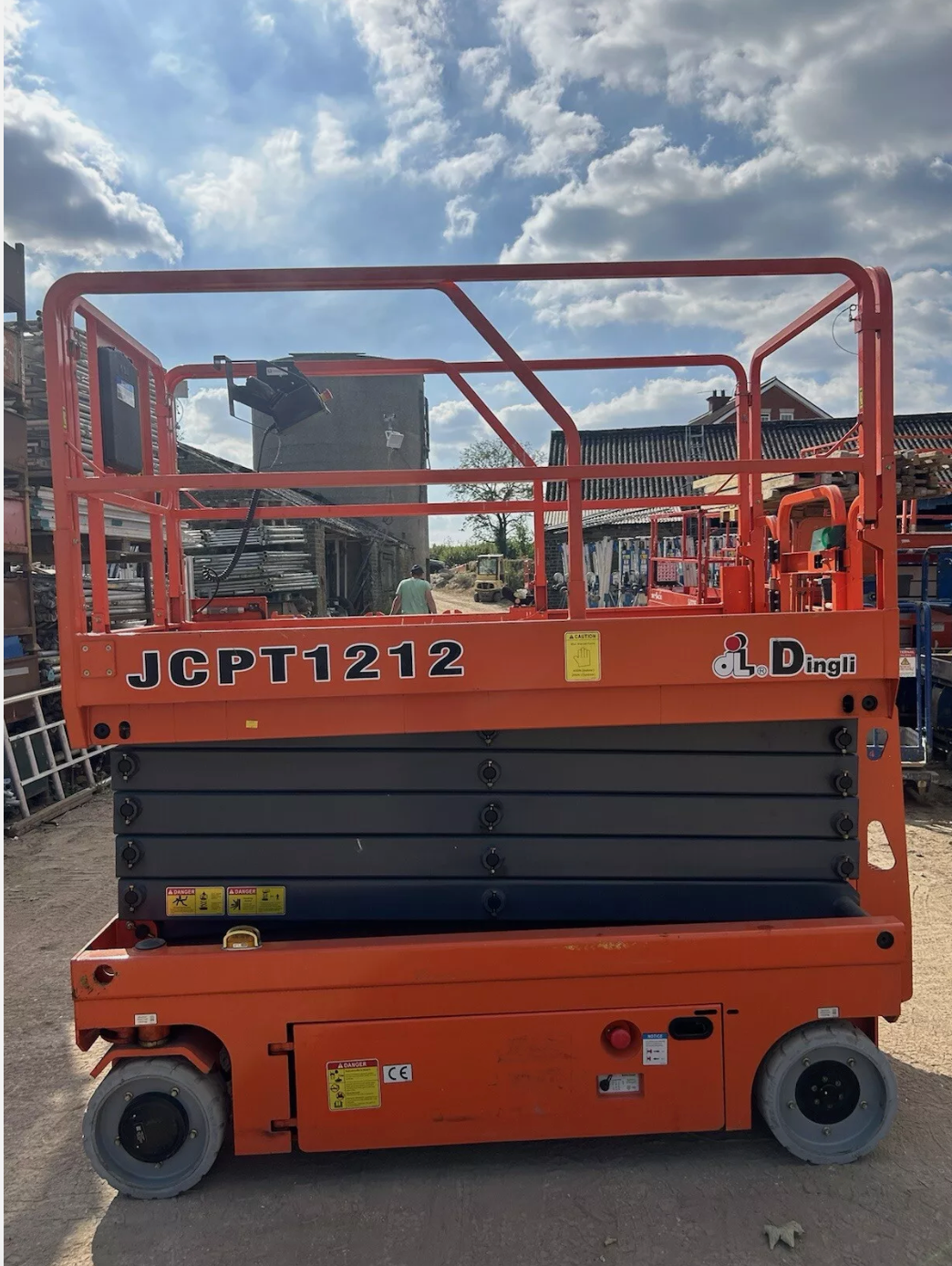

Introducing theDingli JCPT1212 ACelectric scissor lift, your ultimate solution for accessing elevated work areas with ease. With a maximum platform height of 10 meters, it allows you to reach working heights of up to 12 meters effortlessly. This versatile unit is designed for both indoor and outdoor use, adapting to various environments seamlessly.
Supplied with 6 months LOLER Certificate
60 days warranty
Fully serviced
Max. Working Height 12m

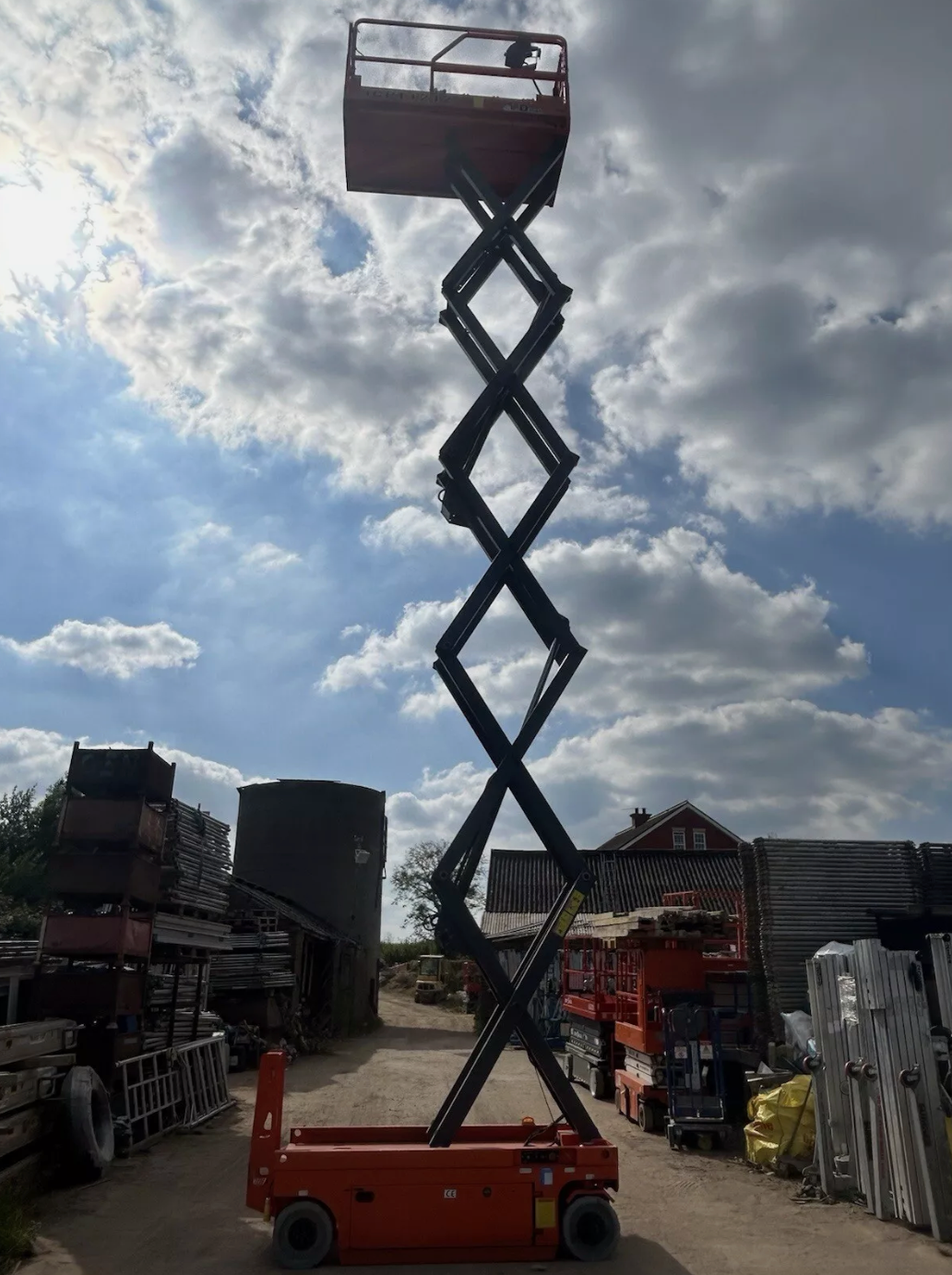

Max. Platform Height 10m
Overall Length 2.48m
Overall Width 1.15m
Overall Height(Rails Up) 2.49m
Overall Height(Rails Down) 1.96m

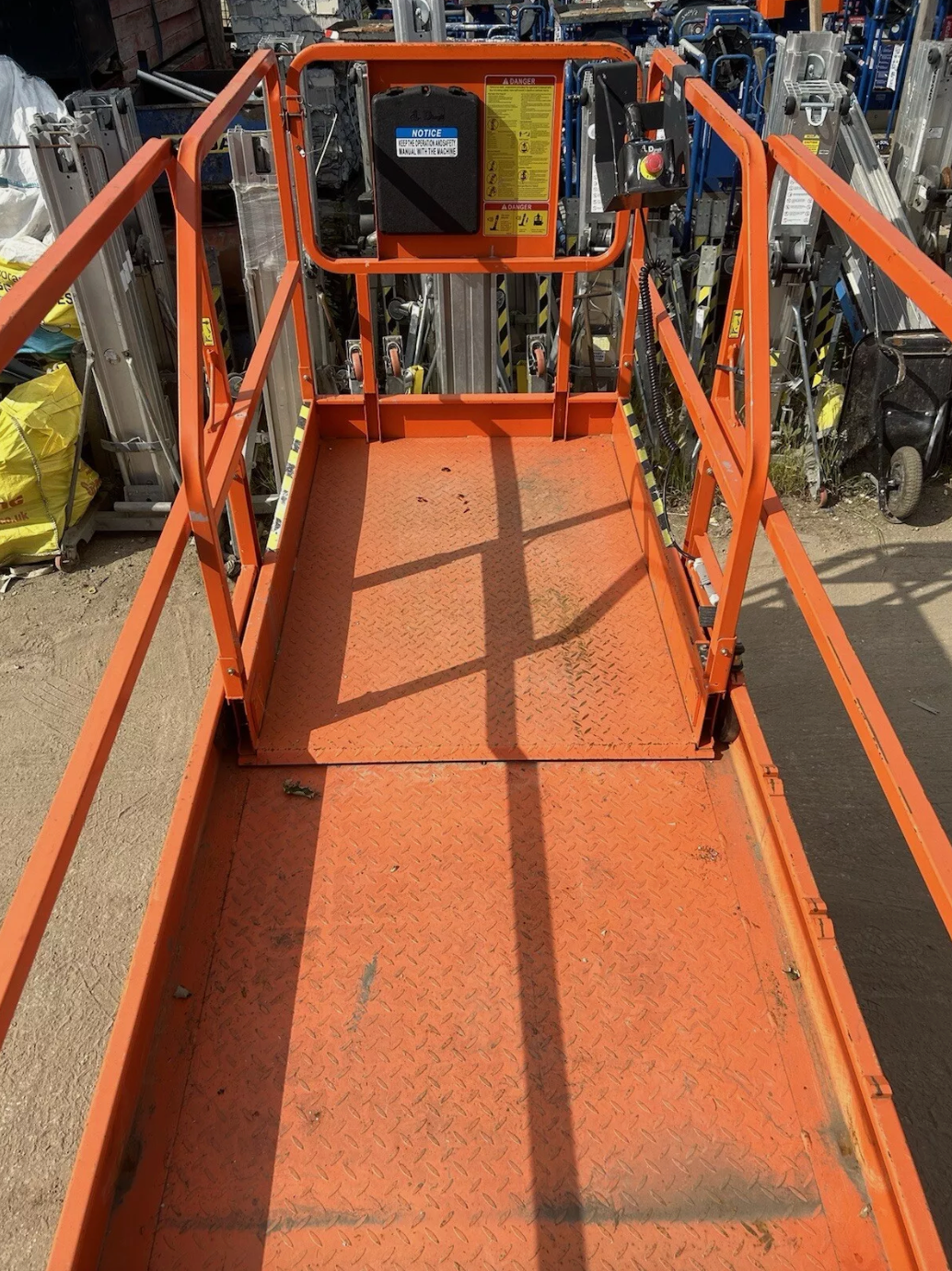

Platform Size(Length×Width) 2.27m×1.12m
Platform Extension Size 0.90m
Ground Clearance(Raised/Stowed) 0.019m/0.10m
Wheelbase 1.87m
Turning Radius(Inside/Outside) 0m/2.20m

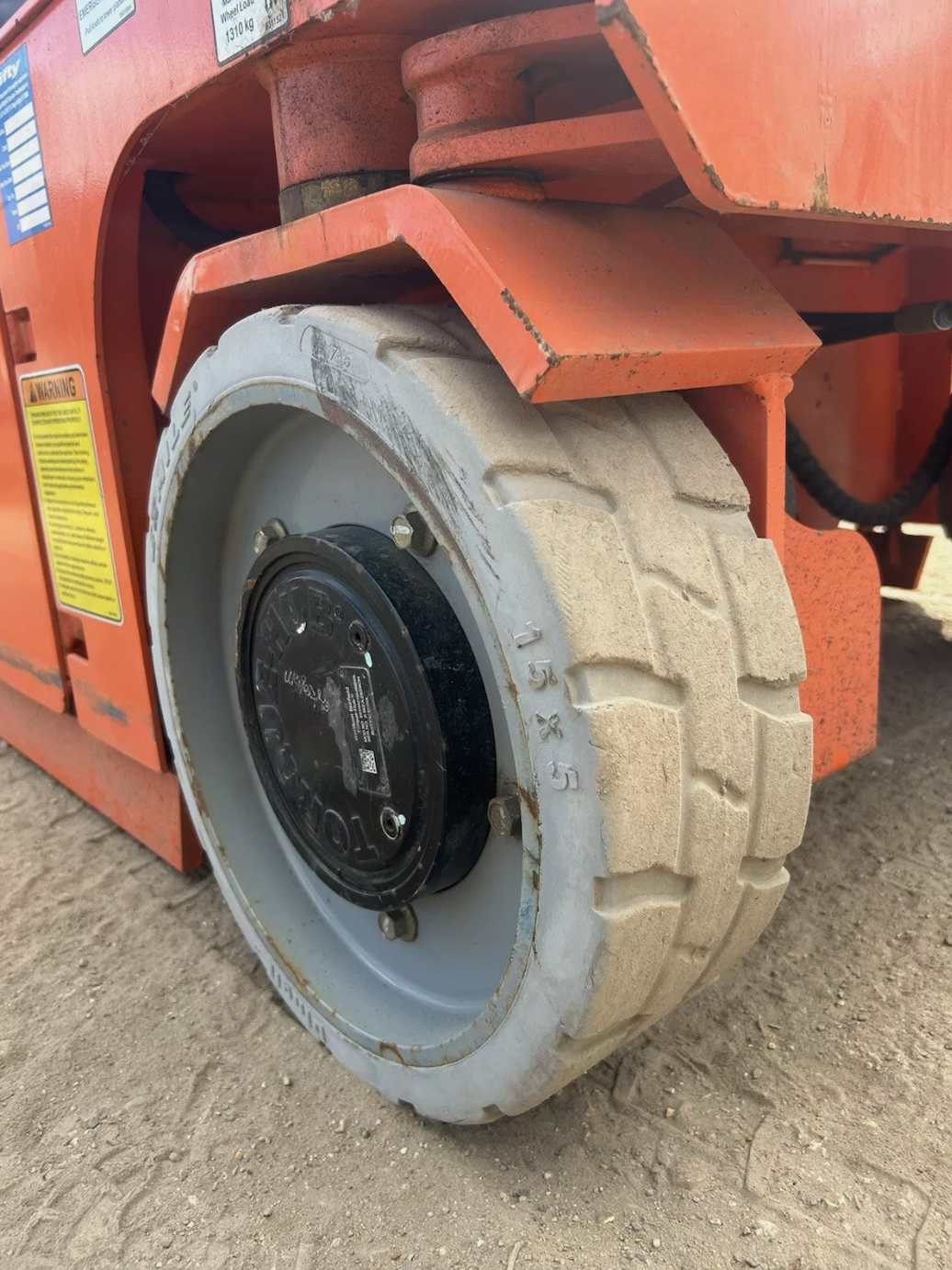

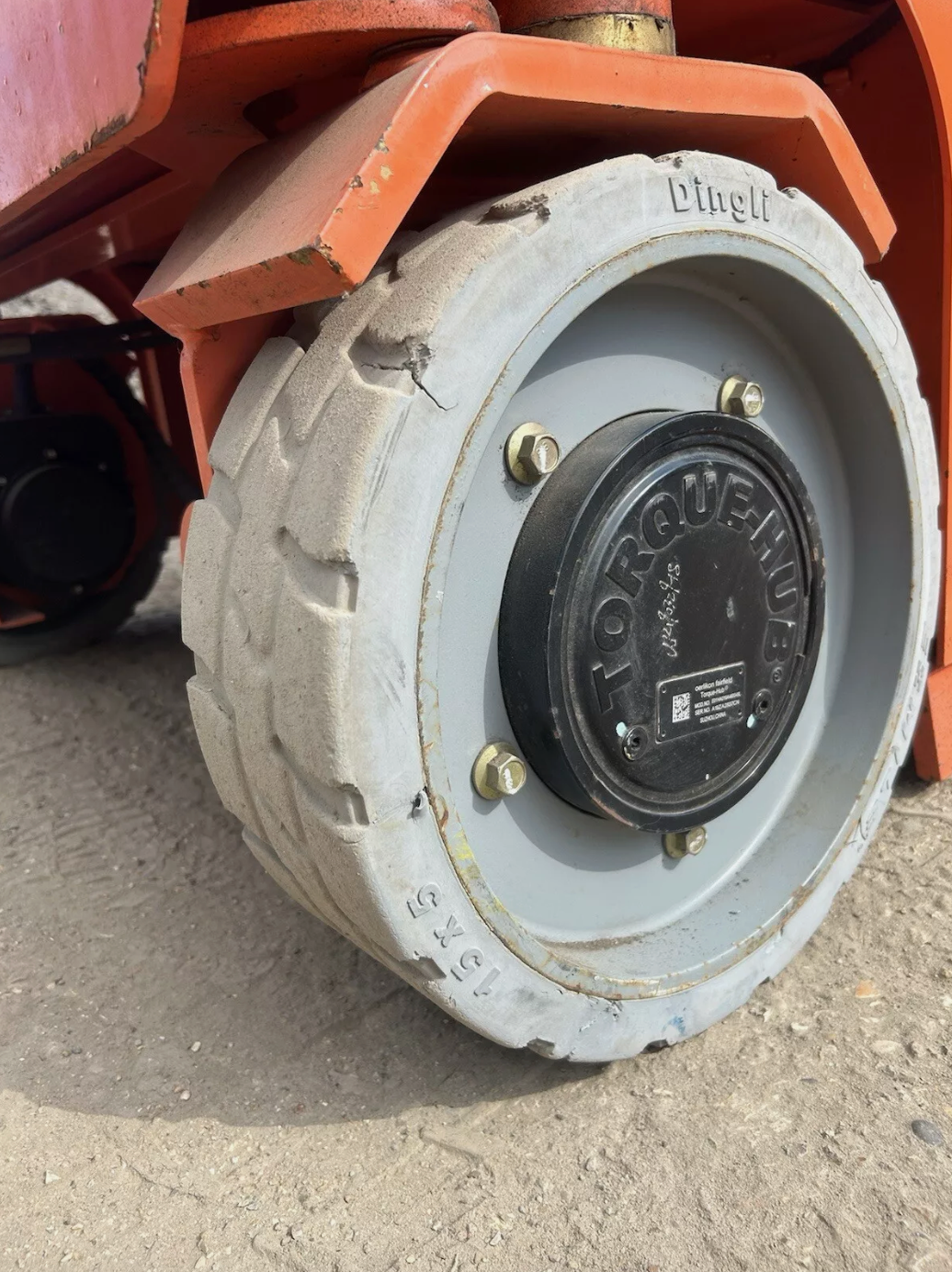

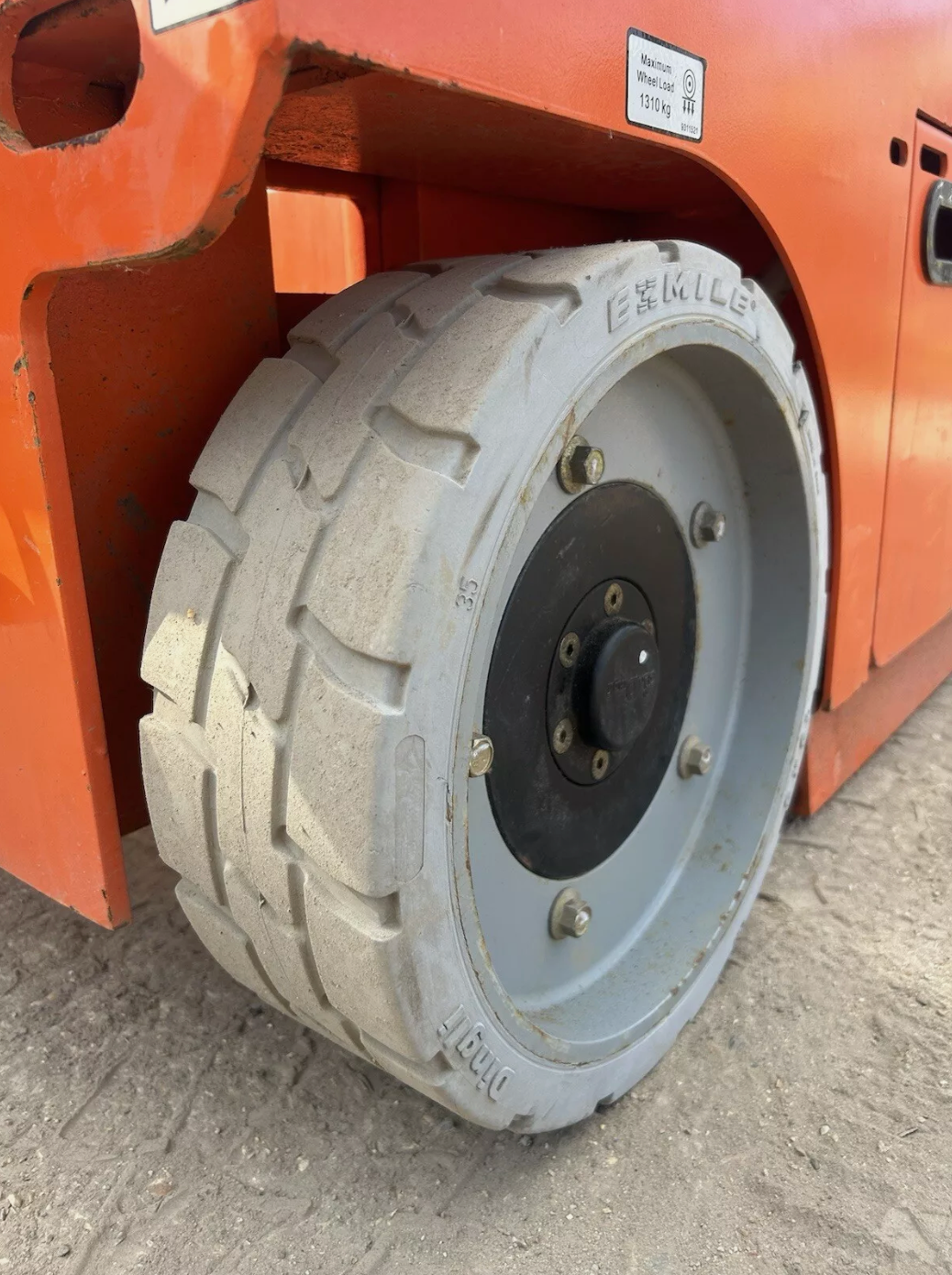

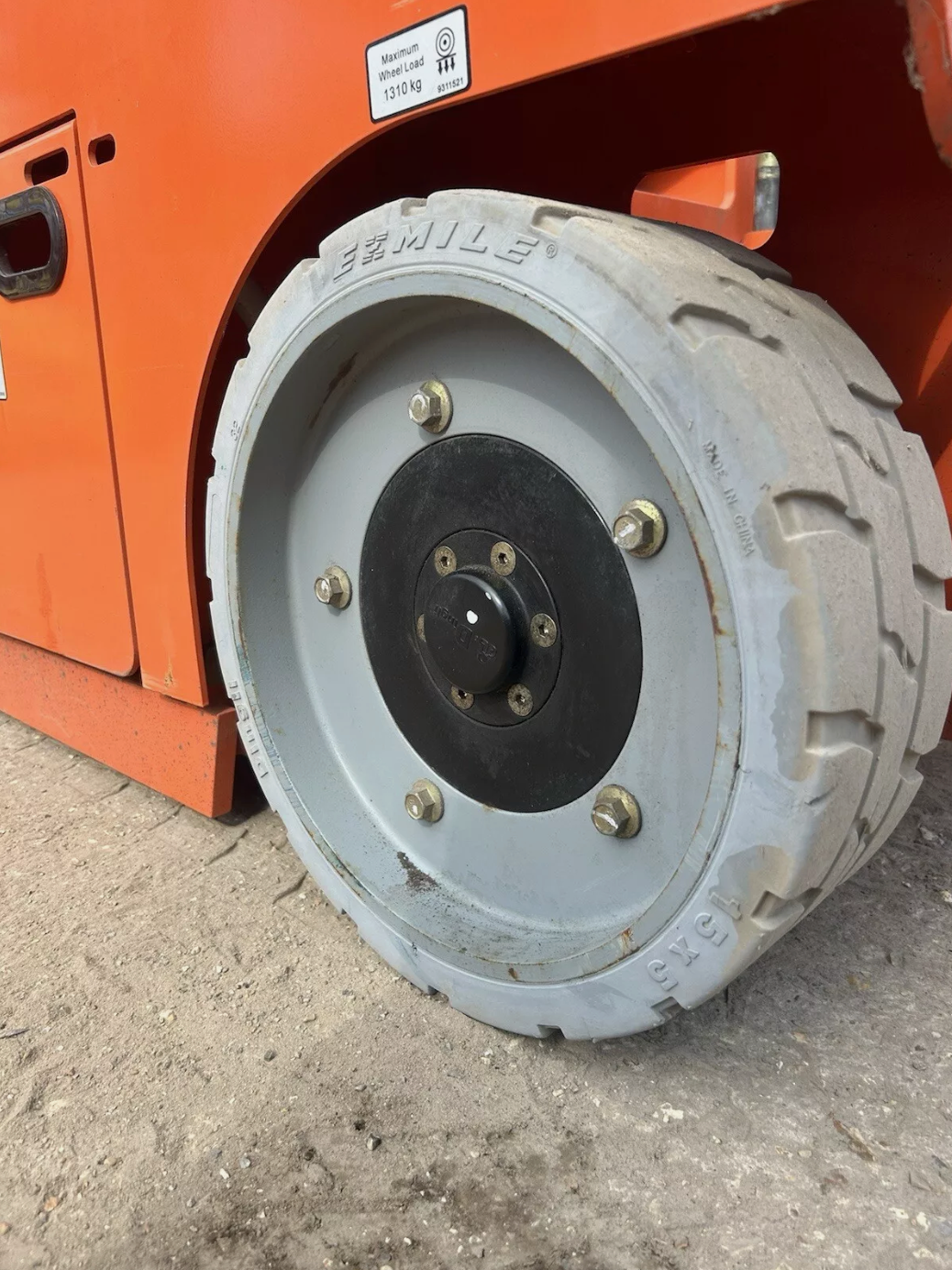

Tyres φ381×127mm
S.W.L 320kg
S.W.L On Extension 113kg
Max. Occupants 2
Gradeability 0.25
Travel Speed(Stowed) 5.0km/h
Travel Speed(Raised) 0.8km/h
Max. Working Slope 1.5°/3°
Up/Down Speed 54/45sec
Overall Weight 3060kg

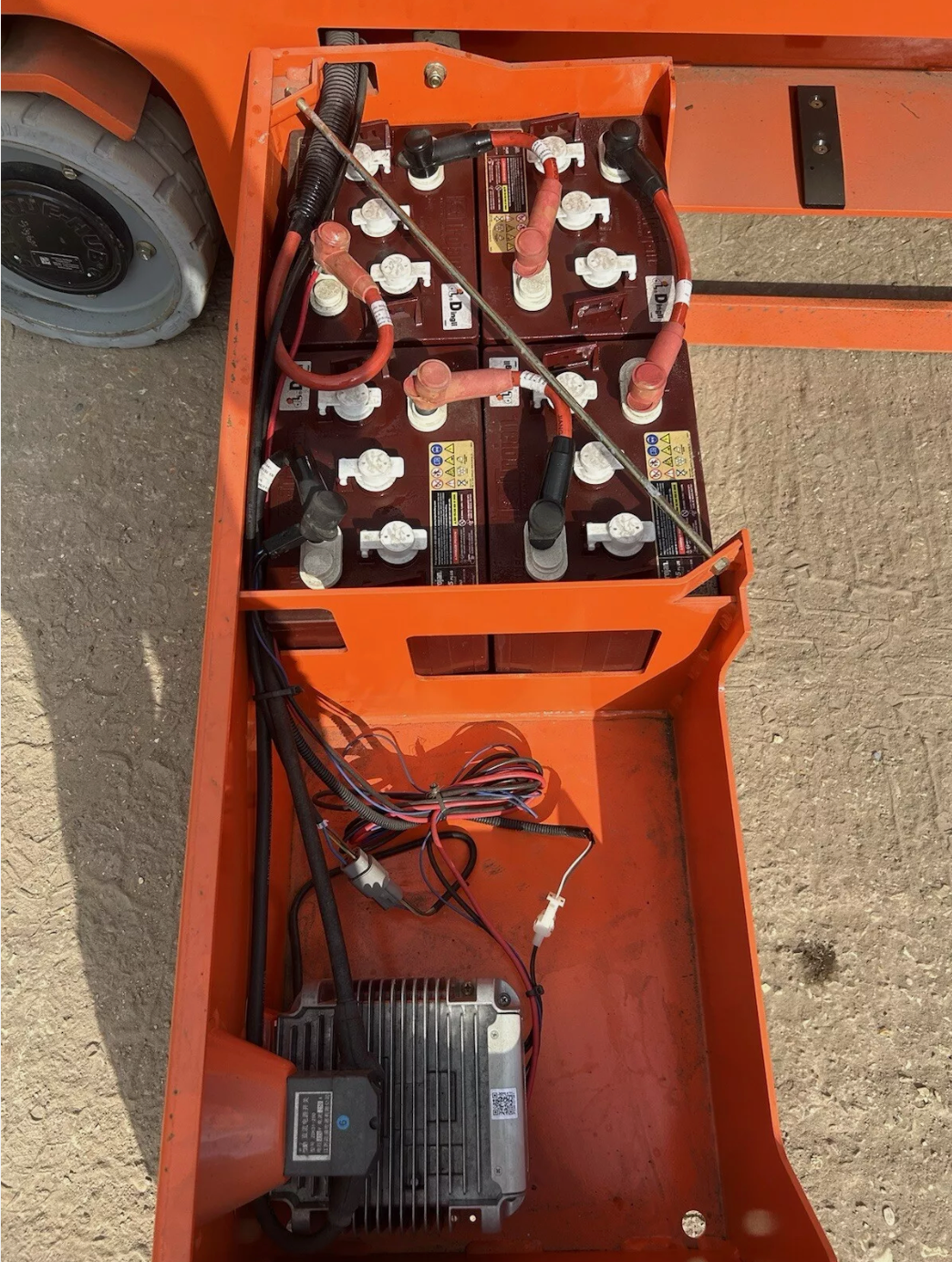

Battery 4×6V/200Ah
Charger 24V/30A
Driving Motor 2x24V/0.87kW

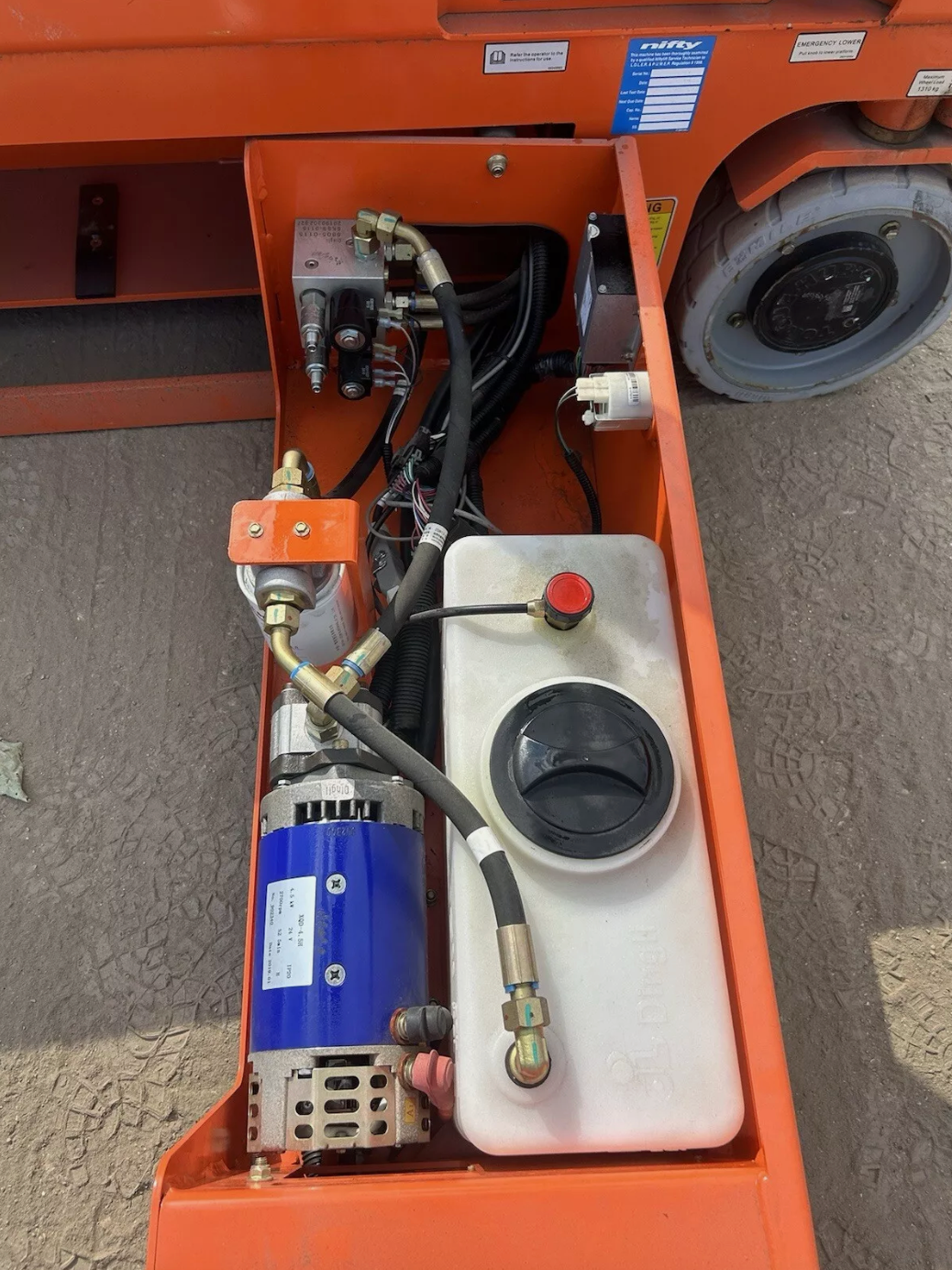

Lifting Motor 24V/3.5kW
VAT to be added to the price. Full VAT invoice supplied
For more information please contact me on 07508843258 or …info@cshiresolutions.com…
